In 1752, a young George Washington surveyed "a certain tract of waste land" along the Cacapon River, approximately 20 miles west of present day Winchester, Virginia.

Washington's 1751 survey of "A certain tract of waste land" on the Cacapon River, situated on what is now the northwest border of West Virginia and Virginia. [CT-6551-3]

Washington's 1751 survey of "A certain tract of waste land" on the Cacapon River, situated on what is now the northwest border of West Virginia and Virginia. [CT-6551-3]

Tools of the Trade

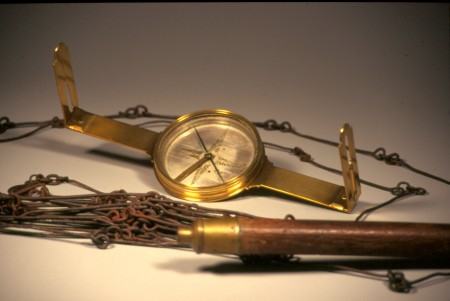

The circumferentor and chains were essential tools for Washington's survey fieldwork (MVLA)

When George Washington arrived at this site, he had already been surveying in the area for several days. He immediately set about running survey lines, applying the methods and instruments commonly used by colonial surveyors of the time.

In the field, his basic equipment included a "circumferentor", or plain surveying compass, mounted on a Jacob's staff or tripod, and one or more survey chains. The circumferentor, a brass encased magnetic compass with perpendicular sights attached, was used by Washington to determine the bearings of boundary lines.



As he traversed the tract, two hired "chainmen" measured the distance between points, using a standard chain of 33 feet (two poles) in length. George Washington referenced natural landmarks, such as "two white Oaks (Point B), two Maples (Point D), and red Oak white Oak & saplings on the point of a hill (Point E)," to denote the corners of the tract. William Naylor acted as "marker," following the chainmen and notching trees along the boundary lines. As he surveyed, Washington made a rough sketch and description of the tract in a field notebook that he carried.

Platting the Measurements

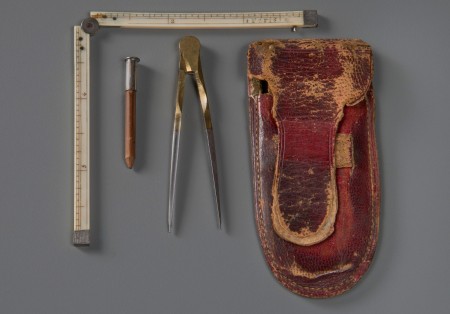

Upon returning from the field, Washington accurately "platted" his surveys using similar drafting instruments [W-1369/A]

Once his work in the field was complete, Washington platted the finished measurements. Using drafting instruments, including a proportional compass, protractor, and ivory plotting scales, he made a scaled drawing and detailed description of the tract. He then computed the total area in acres using arithmetic and geometric formulae.

The final step was to date and sign the completed document and record the names of the three members of his survey team. For his work, George Washington was paid 2 pounds, 3 shillings.

A copy of the completed survey was then sent to the proprietor's land office at Belvoir for issuance of a grant. Naylor evidently chose not to have the land granted right away, probably to avoid paying his annual quitrent (approximately 5 shillings) to Lord Fairfax. He either renounced or sold his title to the tract, for the acreage was eventually granted to John Arnold on May 20, 1769.
